Clean, compressed air, economically produced.

• 100% oil-free compressed air
• maximum flexibility through variable and fixed speed
• enormous energy-saving potential
• robust and quiet
• safe in operation by proven design
• clear, simple layout for ease of service
• environmental friendly operation

The LENTO concept offers technological advantages with no compromise:

• High quality, 100% oil-free compressed air is demanded not only in pharmacy, foodstuffs, electrical engineering and medical industries, but is very important in all applications where products of highest quality are produced.
• Only water, the most natural of all raw materials, is used in the compression process resulting in clean, environmentally friendly compressed air with no oil; dirt and other dust particles drawn in and cleansed by the water treatment system. Clean condensate (pure water) can be fed directly into the drainage system.
• Lowest temperatures during compression through optimum heat transfer via the water and this with minimum energy consumption

The LENTO range of speed-controlled direct drive compressors provide optimum economy by:

• exactly matching the flow from the compressor to the compressed air requirements at any time.
• avoidance of switching cycles and the consequent costly no-load periods.
• energy-saving start-up, with no current surge.
• freely selectable operating pressure from 5 – 10 bar.
• The reduced pressure produced saves you money.

The combination of the "Energy-saving duo" is unbeatable:

• the LENTO with "fixed speed" covers the basic load for a compressor station.
• the LENTO with "variable speed" takes up any additional requirement, e. g. peaks in consumption.

The Integrated Dryer:

• ensures minimum compressed air output temperatures, i. e. a separate dryer may not be required.
• reduces costs and simplifies installation as no additional water is required.

Minimised service and maintenance costs compared with other oil-free compression systems with fewer service items

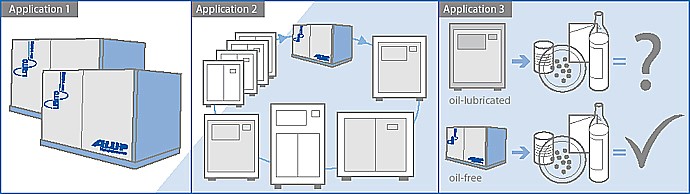

Application 1 -
LENTO, the oil-free compressed air provider as a free-standing system or as a multi-unit solution for economical, oilfree compressed air production in the medium output range. The benefits for you: cost-effective, operationally safe with low maintenance compressed air production.

Application 2 -
LENTO, the oil-free, speed-controlled compressed air provider is best suited to take over in existing oil-free compressed air stations as the master “command” system. The benefits for you: The entire station becomes more economical immediately, and peaks in consumption can be buffered by “governing”.

Application 3 -

LENTO, the oil-free compressed air producer, as a safe alternative to replace oil-lubricated with oil-free compressed air cost-effectively in critical sectors (such as food, chemicals and pharmaceuticals). The benefits for you: high security for your products (no oil present) and fewer waste disposal problems.

Air end

• Single stage, water-injected air end
• bronze alloy stator
• polymerised ceramic rotors
• lowest compression temperatures less than 60°C

Motor

• Highly efficient drive motor
• IP 55 protection class F
• compact, powerful and safe in operation designed for maximum cooling.

Plus-Version with integrated dryer
Provides dry compressed air at the input to the compressed air network.

Total water quality

• Reverse Osmosis system integrated.
• Generates Water from a standard mains supply.
• Reverse Osmosis water protects the unit and avoids bacteria growth.

Direct Drive

• Highly effective power transmission.
• optimum performance.

SCD frequency converter

• fully integrated system.
• conforms to EMC directives.

Air Control

• the compressor‘s intelligence.
• thinks, monitors and records.
